Laser 3-chip LCD projector
EFL-WU53S
EFL-WU53S

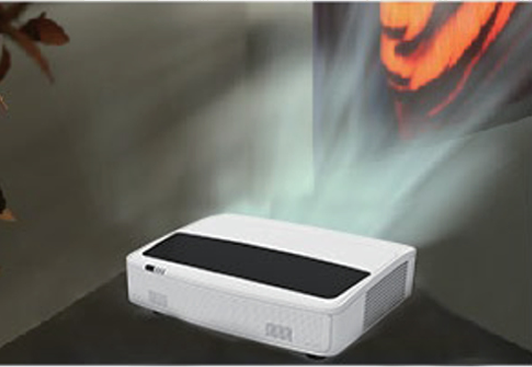

WITIW EFL series laser projector adopts RGB 3-chip LCD projection technology, which effectively uses light source to reduce light loss. It has the characteristics of high brightness efficiency, large color space, energy saving and environmental protection.
Compared with other projection technologies, the use of 3-chip LCD projection technology enables WITIW EFL series projectors to project high color brightness, clear, bright and gorgeous images, without color overflow and rainbow phenomenon, which can make viewing more comfortable.
FEAURES
HBR: Laser fluorescent light source
The WITIW EFL-WU53S laser projector uses a newly developed laser source, an inorganic fluorescent wheel with high heat resistance and strong light resistance, and a sealed optical path, which can output a brightness of up to 5300 lumens.
High contrast: 500,000:1
The high contrast ratio of 500,000 to 1 can show the delicacy of the picture and the details of the contrast between light and shade, which brings the user a wonderful feeling of being in the scene.
High resolution: WUXGA
WUXGA (1920x1200 pixels) can present full HD video images. Even if it is projected on a large screen, it can still maintain clear and vivid details, bringing users a vibrant visual experience.

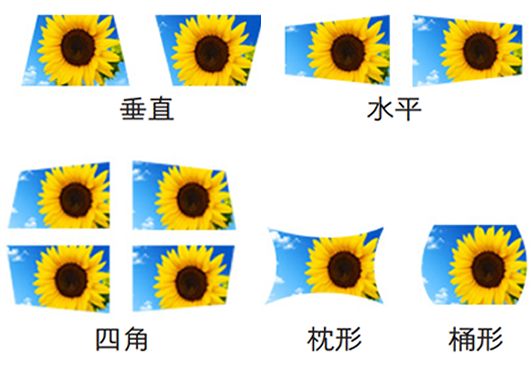

High fidelity: Hexagonal correction + Multipoint correction
The powerful combination of horizontal / vertical trapezoidal correction + hexagonal correction + pillow / barrel distortion correction + multipoint trapezoidal correction makes the adjustment operation simple, ensuring that users can achieve high fidelity imaging effects on various irregular projection surfaces.

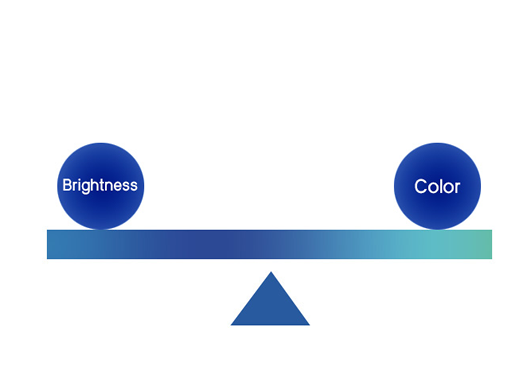

More balanced: High brightness + Wide gamut
Color management of WITIW comes from more than ten years of R&D experience. It is a color management technology specially applied to projection display. At the same time, thanks to the characteristics of high spectrum and wide color gamut of laser light source, EFL series can not only ensure abundant brightness output, but also have rich color performance, so as to achieve the effect of brightness and color balance.

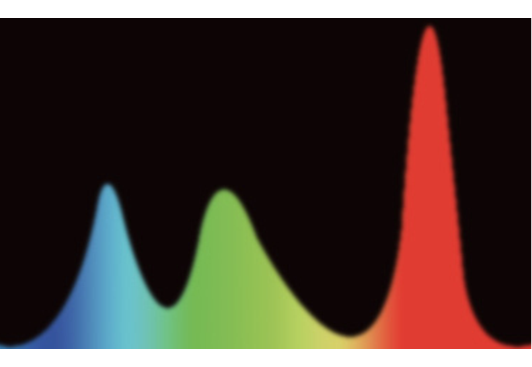

More gorgeous: Wide spectrum + High color restoration
In the spectrum of EFL series, the height of red and the width of blue and green are much better than traditional light sources, which can not only provide high brightness, but also show a high degree of pure and beautiful color restoration close to nature.
Shorter focal length: 0.235:1 projection ratio
With an ultra short focal projection ratio of 0.235:1, users can enjoy a 100 inch giant screen at less than 20cm from the rear end of the machine to the wall.

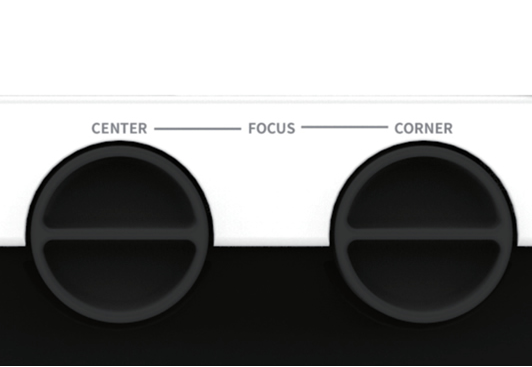

Clearer: Fine focusing + Secondary focusing
The whole image is accurately focused to ensure that the picture in the central area is clear, and the four corner secondary focusing makes the picture clearer.

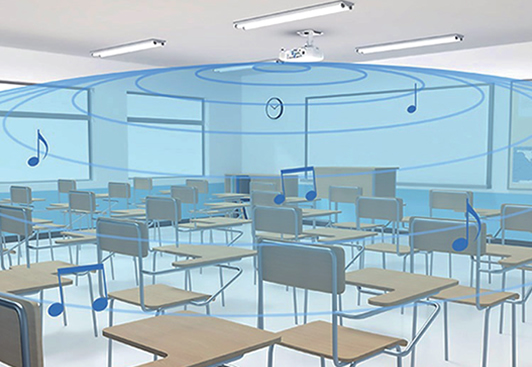

Louder: Built-in 16W speaker
A built-in 16W speaker with outstanding performance makes the sound louder and the overall performance more colored and sound.
SPECS
| Projection type | Laser 3-chip LCD projector |
| Display technology | 3-chip LCD (0.64 inch LCD with micro mirror array) |
| Brightness | 5300 ISO lumens |
| Resolution ratio | 1920 x 1200(WUXGA) |
| Contrast ratio | 500000:1 |
| Aspect ratio | 16:10 |
| Light source | Laser diode |
| Light source lifetime | 20000H |
| Optical lens shift | fixed |
| Lens type | Manual focus / 0.235: 1 fixed focus |
| Image size | 80~120 inch (diagonal) |
| Geometric correction | V: ± 30 °; H: ± 30 °; Pillow / barrel correction; Six angle geometric correction (wall corner); Grid image correction |
| Inputs | VGA x1；HDMI 1.4 x2；Mini jack 3.5mm audio x1 |
| Speaker | 16W x1 |
| Outputs | VGA x1；Mini jack 3.5mm audio x1 |
| Control | Serial port (D-sub 9 pin, RS232) x1; RJ45(10BASE-T/100BASE-TX) x1 |
| Other interfaces | USB-A x1；USB-B x1 |
| Internet of Things(IoT) | Crestron RoomView (Compatible)；AMX Discovery (Compatible)；PJ Link (Compatible) |
| Scanning frequency | V:24~85Hz；H:15~100KHz |
| Computer input | VGA； SVGA； XGA； SXGA；WXGA；UXGA；WUXGA；4K@30Hz |
| Video input | 480i； 480p； 576i； 576p； 720p； 1080i；1080p |
| Image mode | Dynamic, Standard, Cinema, Color board, DICOM |
| Edge blending | Yes |
| Automatic function | INPUT SEARCH；AUTO PC；Automatic hoisting detection |
| Electronic zoom | 1~33 times |
| 360 degree projection | Yes |
| Heat dissipation mode | Air cooling |
| Shutdown heat dissipation mode | 0 seconds shutdown; normal shutdown; 60 seconds shutdown |
| High sea level model | Yes (0~3000m) |
| Noise level | 37dB(Normal)；30dB(ECO1)；27dB(ECO2） |
| Power requirements | 100~240V@ 50/60Hz |
| Power consumption | 360W(Standard mode)；230W(ECO2) |
| Standby power | <0.5W |
| Operational ambient | Temperature 5℃ ~ 40℃； Humidity 20%~80%(No condensation) |
| Storage ambient | Temperature -10℃ ~ 50℃； Humidity 20%~80%(No condensation) |
| Net weight | About 11 kg |
| Dimensions (WxLxH) | 520mm x 435mm x 168mm |
| Shipping weight from factory | About 13.5 kg |
| Shipping dimensions from factory | 610mm x 526mm x 266mm |
| Certification | CCC, CECP, CEL |
**The above is only an offer invitation, and the contract is the only way of commitment.
